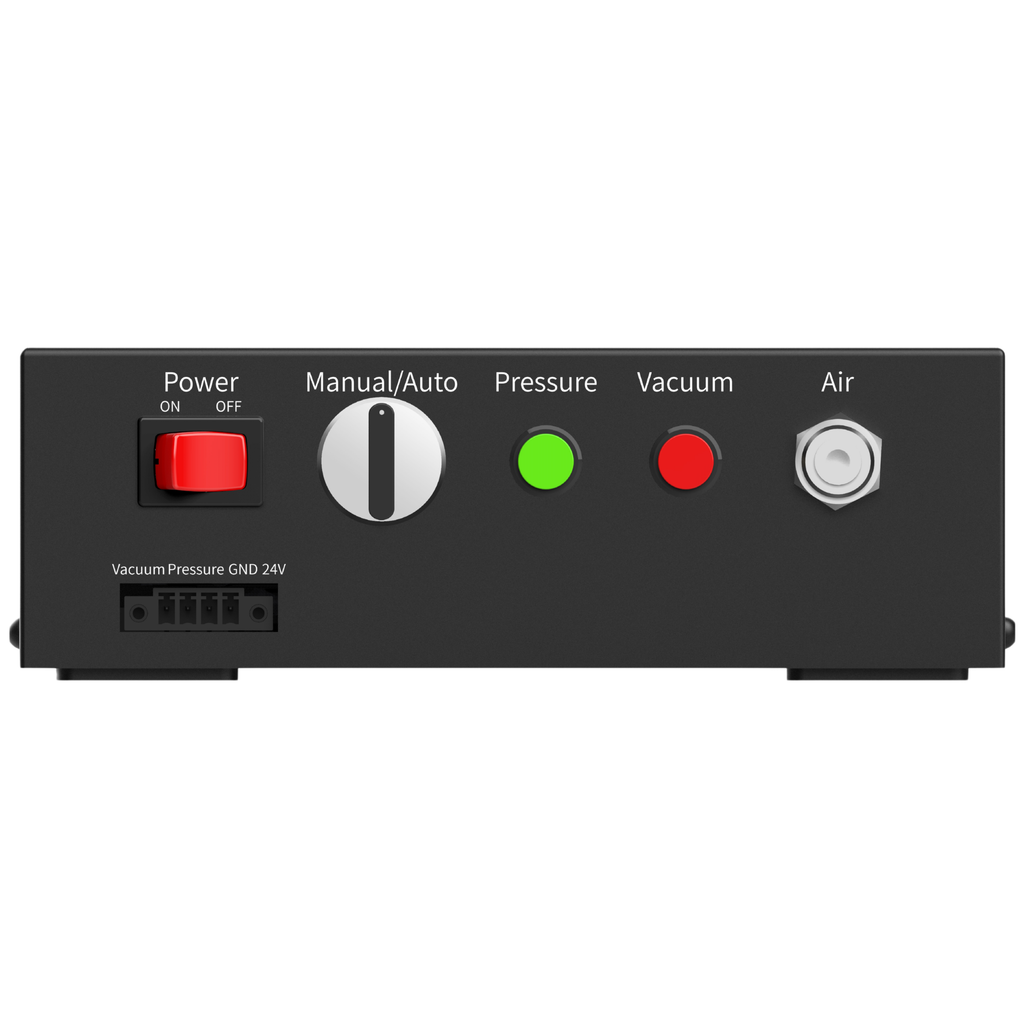

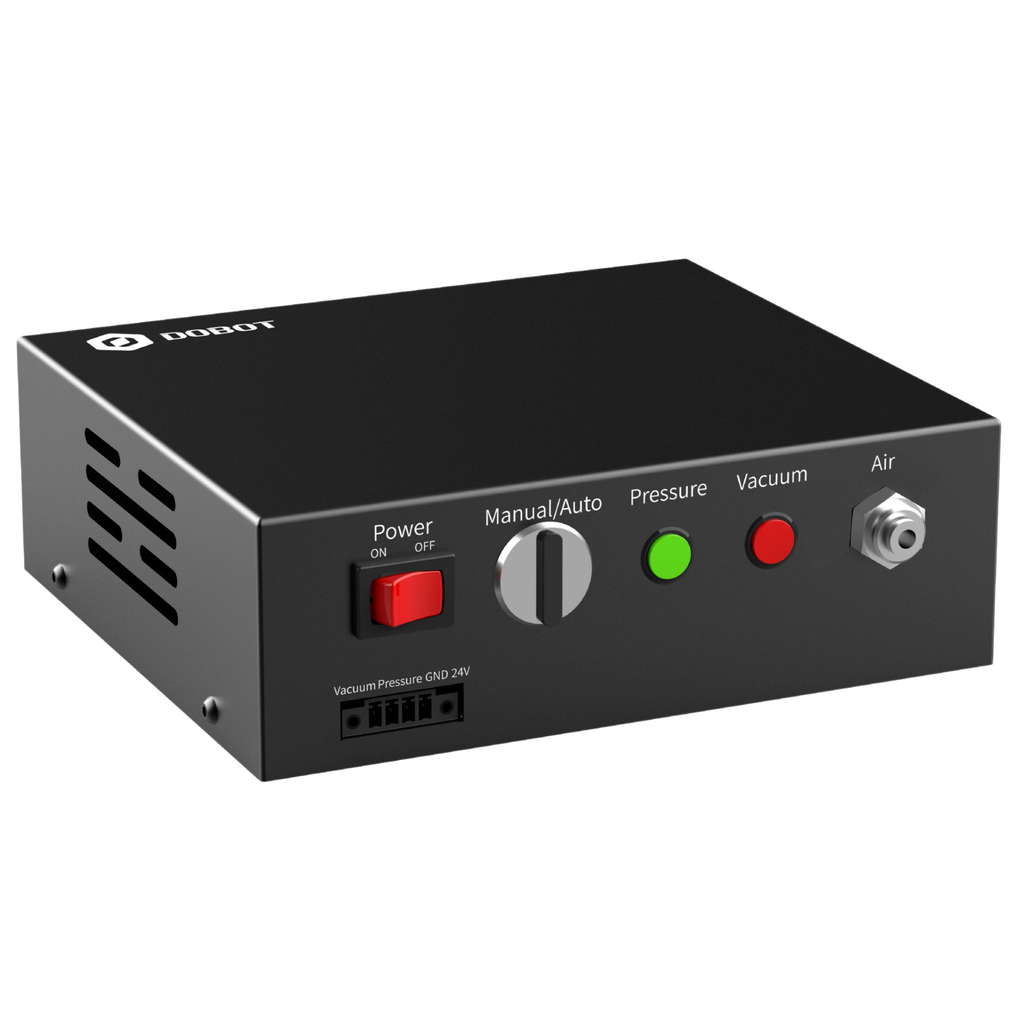

DOBOT Vacuum Pump for MG400 / Magician E6

The DOBOT Mini Mini Vacuum Pump is a compact vacuum source for suction applications with the DOBOT MG400 and DOBOT Magician E6. It enables reliable gripping and handling of workpieces using negative pressure and is particularly suitable for automated pick-and-place applications.

The system provides both vacuum and positive air pressure and can be controlled either manually via the control panel or automatically via the I/O interface. This enables practical implementation of workpiece suction and controlled release in compact automation setups, laboratory environments, and training systems.

Highlights

• Compact vacuum source for suction gripper and pick-and-place applications
• Suitable for DOBOT MG400 and DOBOT Magician E6
• Supports vacuum and positive air pressure
• Manual or automatic operation via selector switch
• I/O control for integration into automation systems
• Status indication via separate LEDs for pressure and vacuum
• Designed for 24 V DC ±10 %
• Air connection for hoses with a diameter of φ4 mm
• Compact design with a net weight of 800 g
• Plug-and-play ready for practical pick-and-place setups

Benefits / Applications

The Mini Vacuum Source is suitable for compact automation cells, training and demonstration setups, and applications in which workpieces are picked up and placed back down using a suction gripper. It is particularly suitable for flat, smooth, or sensitive components and can be used in packaging, pick-and-place, material handling, or assembly applications.

Technical specifications

Scope of delivery

• DOBOT Mini Vacuum Source
• Connection cable
• Air hose φ4 mm
