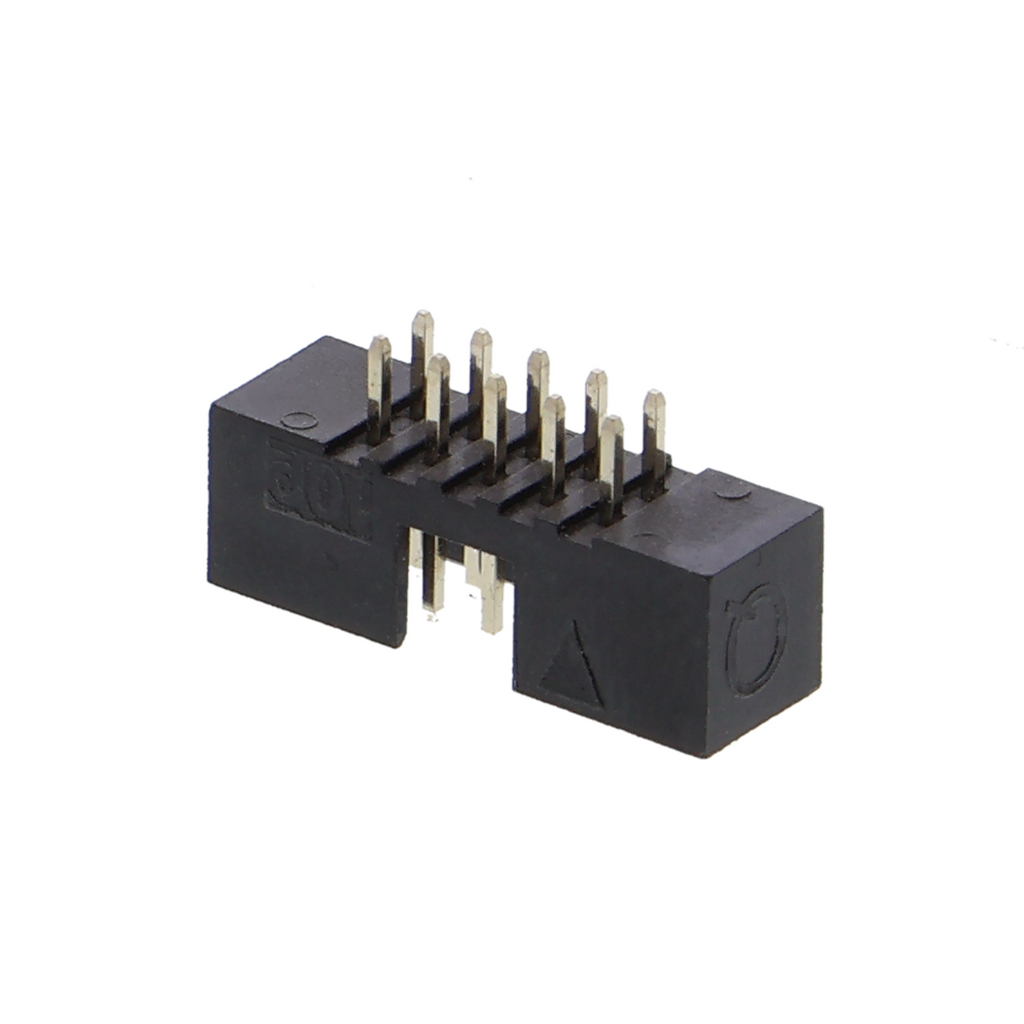

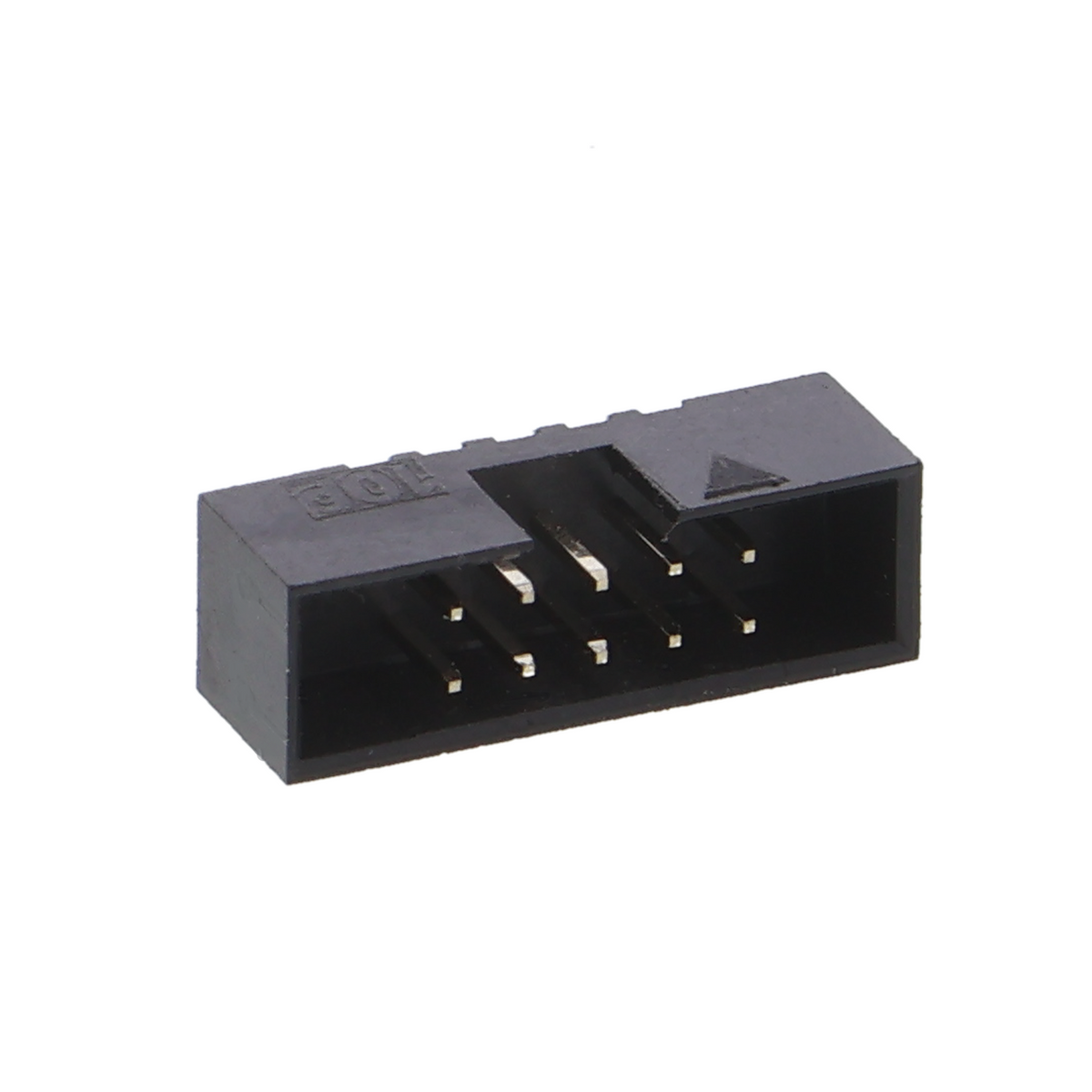

DC3-10P box header - 10-pin, 2.0 mm pitch, for ISP and JTAG
This goes with it
Pay in 30 days
Pay in 30 days
Description
Product overview
- 10-pin box header with 2.0 mm pitch
- For ISP and JTAG applications
- Pin header for soldering onto circuit boards
- Straight design with contacts on top
- Compatible with standard programmers
Product description
This 10-pin box header with a 2.0 mm pitch connects programmers and development boards when flashing firmware or troubleshooting. The pin header is soldered directly onto the circuit board and then provides the standard interfaces for ISP and JTAG programming.
With its 2.0 mm pitch, the header fits programmers equipped according to this standard. This eliminates the need for adapters between the programmer and the board. The straight design with contacts on top enables easy connection to standard ribbon cables or programming connectors without having to tilt the circuit board.
The header is suitable for all projects that require frequent reprogramming or debugging, especially when working with microcontroller boards or embedded systems. Refer to the respective board layout for the assignment plan and exact pinout, as ISP and JTAG may have different pin assignments.
Operation requires a suitable programmer with a matching 2.0 mm connector. When soldering, ensure correct orientation to prevent confusion between the connections.
Safety information
The product is intended exclusively for building prototypes and for testing and development purposes. It is not intended as a component of an electrical installation. Work on or near electrical installations must be carried out by qualified electricians.
Scope of delivery
- 1× DC3-10P box header, 2.0 mm, 10-pin
