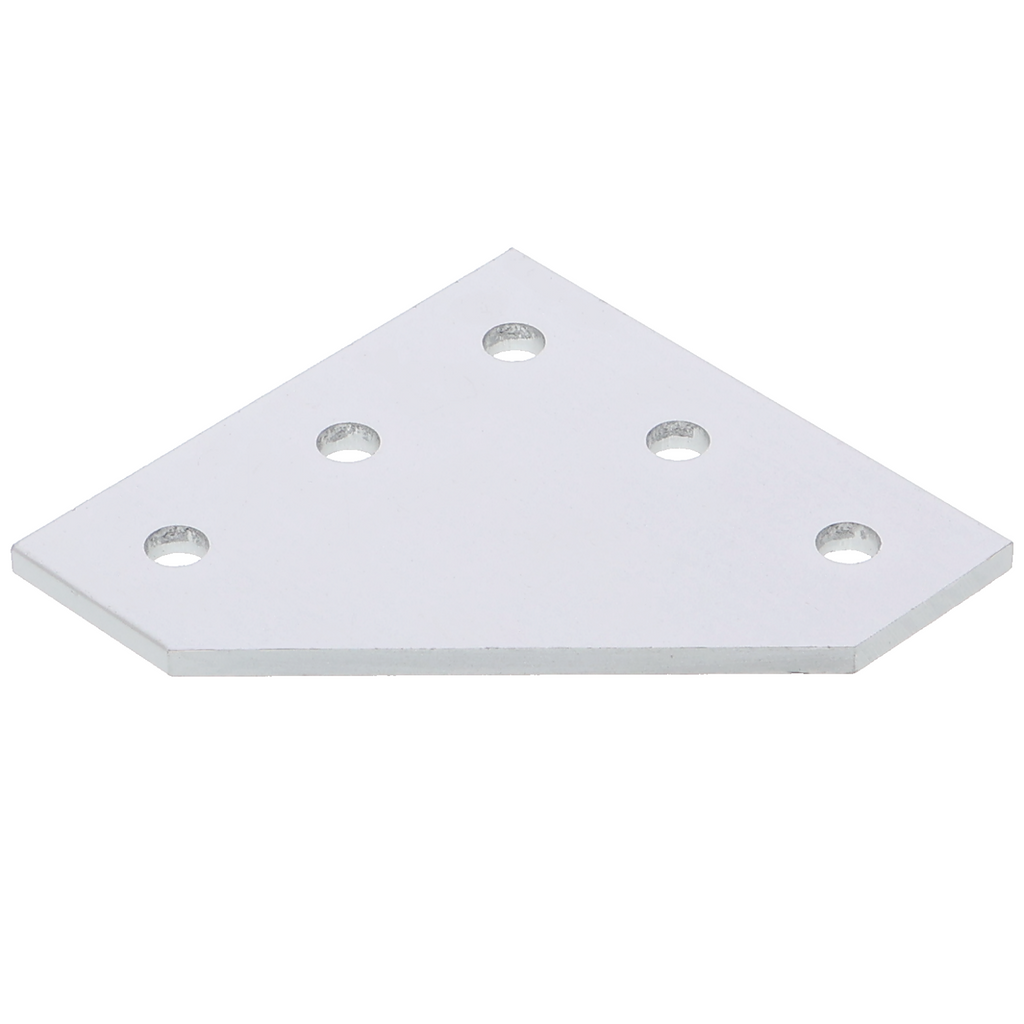

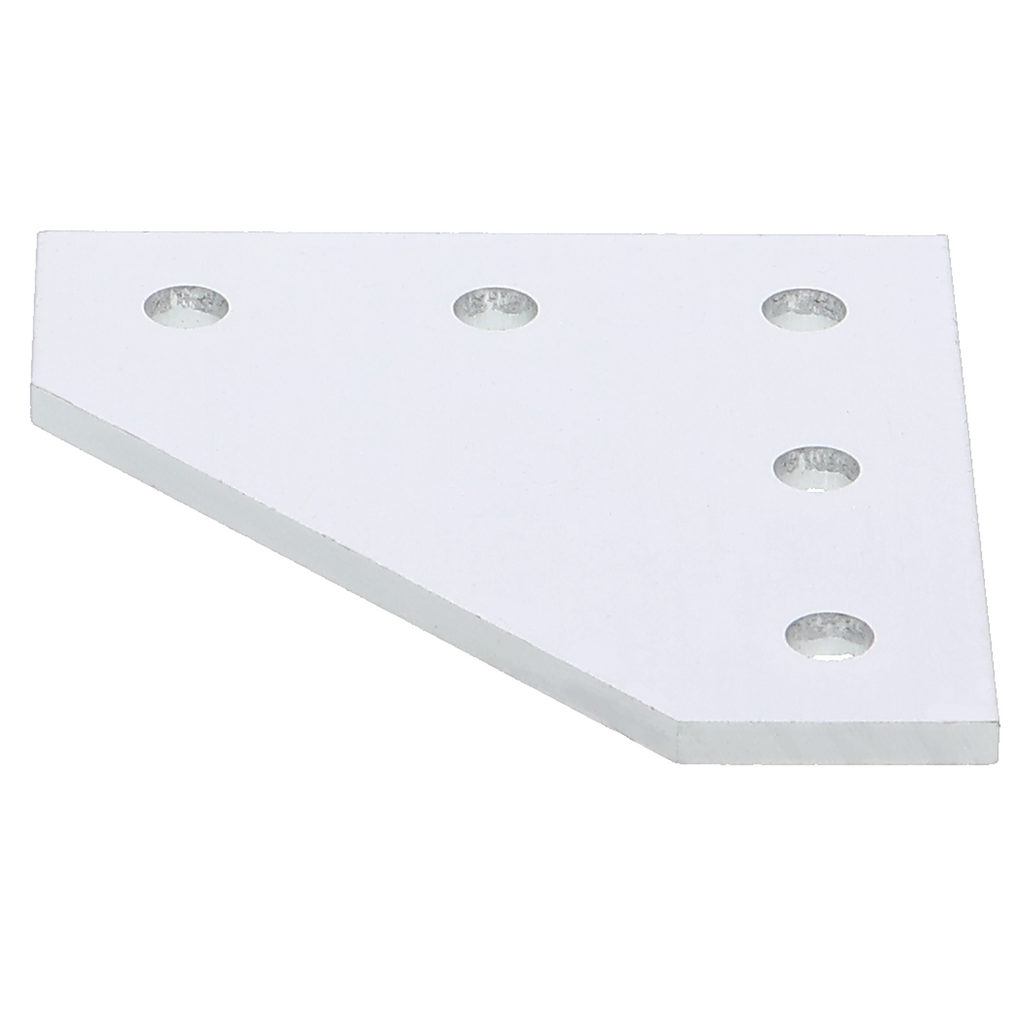

2020 aluminum profile joining plate - 5-hole, 90°, L-shape
Pay in 30 days
Pay in 30 days
Description
Product Overview
- Aluminum connecting plate for 5 hole patterns
- Fits 2020 profile slot (slot width 6 mm)
- Fastening with threaded inserts or T-nuts
- Suitable for stable corner and T-joint connections
- Aluminum construction, corrosion-resistant
Product Description
This connecting plate securely joins two or more 2020 aluminum profiles, contributing to a stable frame construction. The five hole patterns enable various configurations for corner and T-joint connections. The plate slides into the 6 mm-wide slot of the profile and is secured there with threaded inserts or T-nuts.
This design enables flexible constructions without welding or soldering. The aluminum construction keeps the overall weight low, while the material properties provide sufficient stability for light to medium mechanical loads. The screw connections can be loosened and rearranged multiple times.
Typical applications include frames for 3D printers, workbenches, lightweight frame constructions, or test setups in automation technology. The plate is also frequently used for modular shelving systems and adjustable mounting frames.
Threaded inserts or T-nuts with the correct metric thread, as well as screws with a suitable shaft diameter, are required for fastening. The load-bearing capacity depends on the profile cross-section and the screws selected; thicker profiles or multiple connection points are required for heavy loads.
Safety Information
Sharp-edged chips produced when sawing or drilling aluminum can cause injuries. Users should wear work gloves and smooth or deburr surfaces with files after machining. All screw connections must be checked before use and retightened if necessary to ensure a stable structural frame.
Scope of Delivery
- 1x connecting plate for 2020 aluminum profiles, 5-hole, 90° - L-shape
