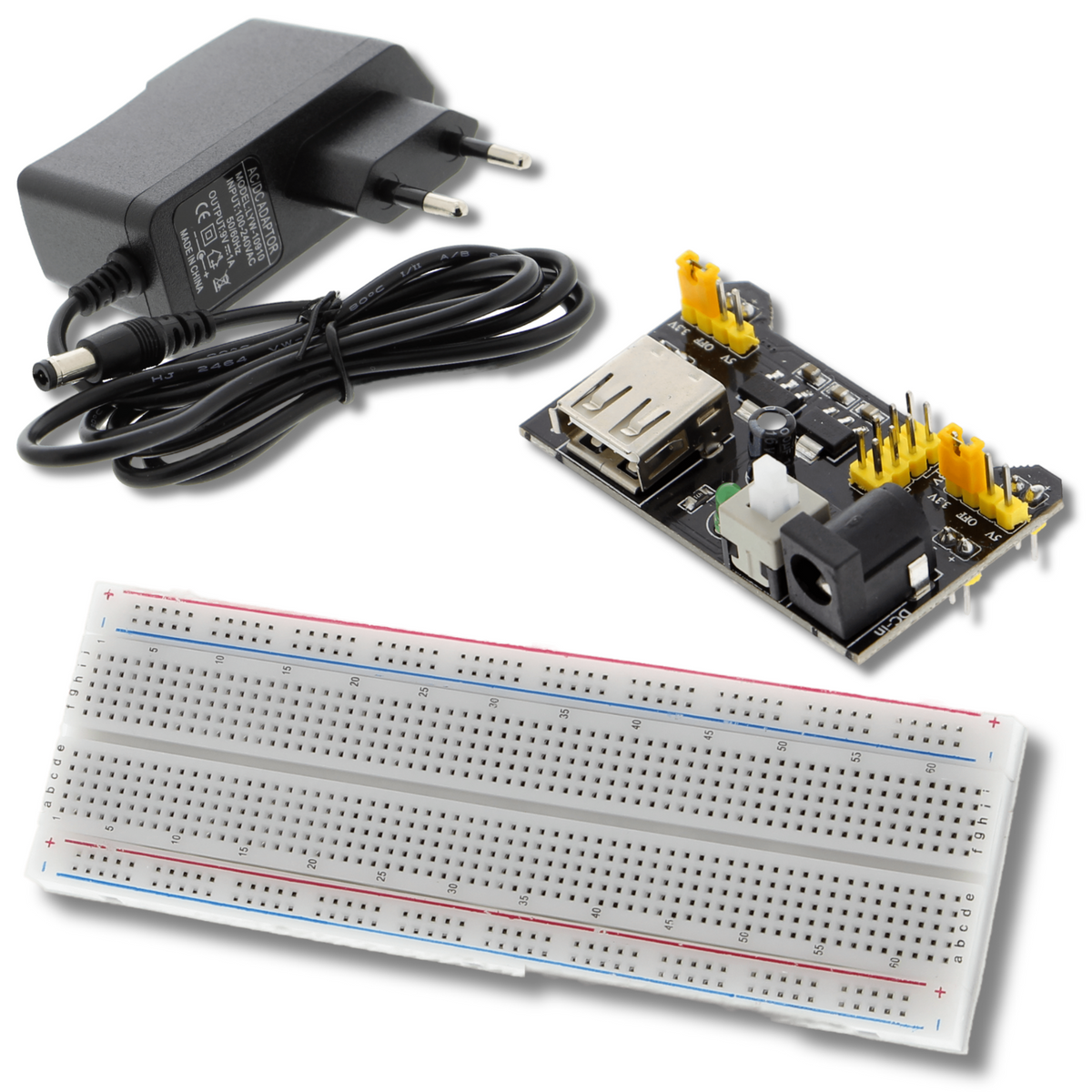

Breadboard bundle - 830 tie points, MB102 power supply module, 9 V / 1 A power adapter
Breadboard bundle - 830 tie points, MB102 power supply module, 9 V / 1 A power adapter
Pay in 30 days
Pay in 30 days
Description
Product Overview
- Breadboard for building circuits without soldering, with 830 contact points in three sections
- Power supply via integrated power module with 9 V and 1 A output
- Power rails for positive and negative connections on both sides
- Dual grid pattern enables branching within the board
- Wide mounting surface with non-slip base
Product Description
This breadboard with 830 connection points is designed for prototyping circuits with microcontrollers, sensors, and actuators. The integrated power supply delivers 9 V at up to 1 A, eliminating the need for a separate power source for many initial projects. The three sections enable the construction of circuits of varying sizes and complexity.
The distributed positive and negative rails on both sides make it easier to supply power to the components. The dual grid pattern allows components with different pitches to be arranged and connections within the setup to be created. The power supply is mounted on the side, leaving the workspace on the board fully accessible.
Typical applications include beginner projects with LED circuits, simple sensor evaluation using microcontroller boards, measurement setups with operational amplifiers, and testing motor controllers. The board can also serve as a development platform when prototyping a standalone circuit until the final PCB is produced.
The power supply limits the available current to 1 A. Those planning projects with multiple high-power actuators may find this to be a bottleneck and will need to choose an external power supply. The circuits remain temporary on the board, but are typically photographed or documented before the setup is dismantled for new experiments.
Safety Information
The product is not intended for installation in the household electrical system and is intended exclusively for building prototypes and for testing and development purposes. Work on or near electrical installations is reserved for qualified electricians. If you are unsure about the function of the power supply, consult a qualified electrician before commissioning.
Scope of Delivery
- 1* Power supply for microcontrollers - 9V, 1A
- 1* Power supply module for breadboards, type MB102 - 3.3V, 5V
- 1* Breadboard with 830 contact points
