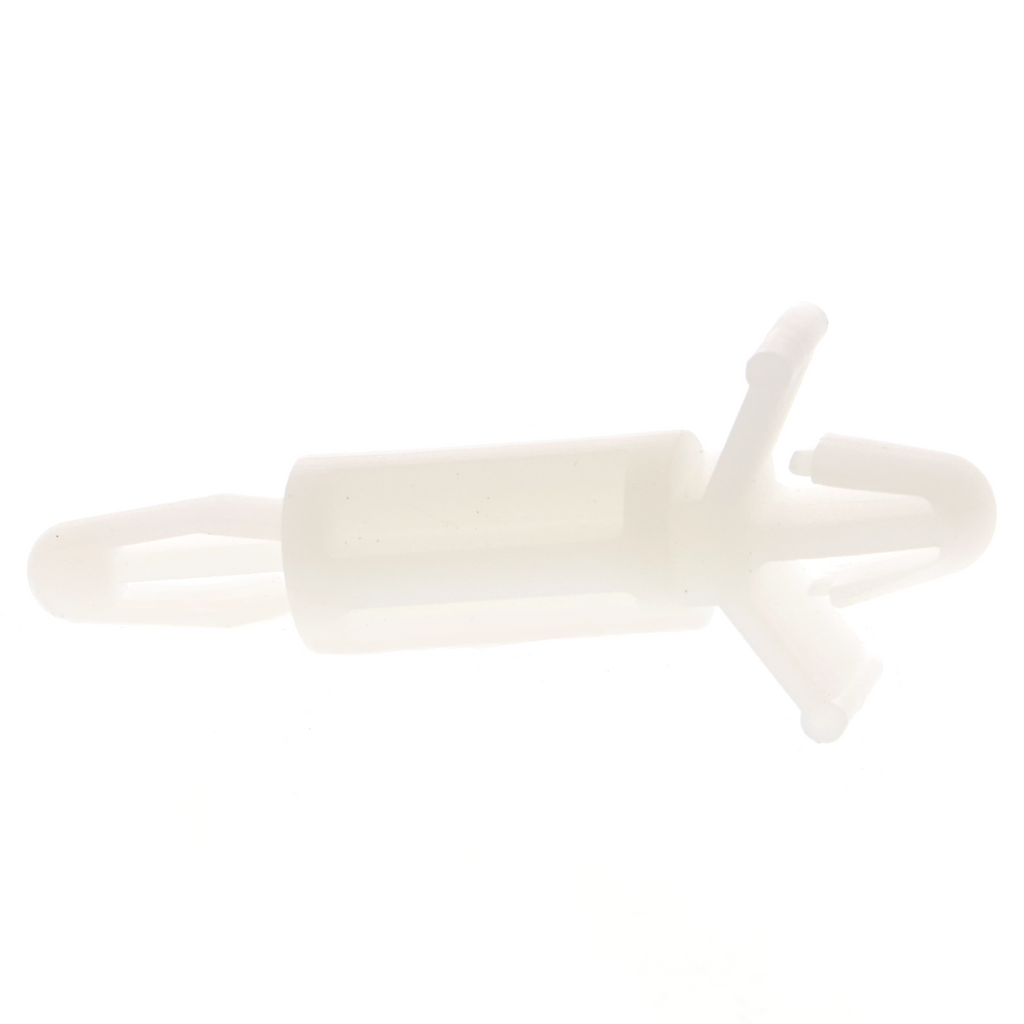

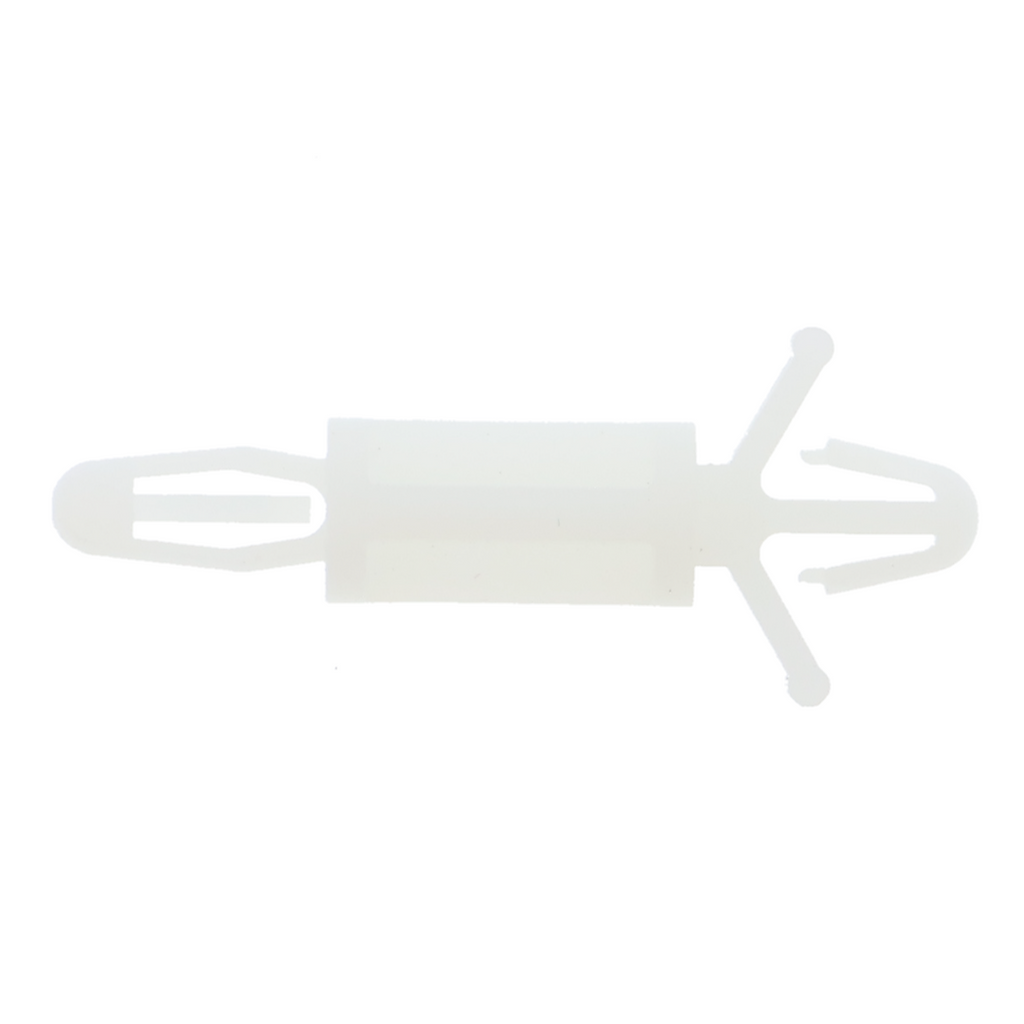

Plastic PCB holders - 4 pieces, for Ø 4 mm, length 31.7 mm

Product Overview

• Four plastic spacers for PCBs
• M3 screw holes for secure mounting
• Height 10 mm, fits under standard DIN rails
• Insulating, prevents short circuits caused by contact with the enclosure
• Self-locking thanks to internal threads
• Set for smaller projects or multiple prototypes

Product Description

These four plastic spacers create clearance between PCBs and enclosure walls or DIN rails. This prevents unintended short circuits if conductive enclosure parts come into contact with the populated board. The internal M3 thread securely holds mounting screws without requiring a nut.

The 10 mm height fits under common DIN rails, but the spacers can also be used in plastic enclosures. The plastic material provides complete insulation, so even live PCB areas can be placed directly against the enclosure without additional insulation. No calibration or preparation is required.

Applications include experimental setups in control cabinets, field control units, and compact test setups. Where space is limited and the PCB must sit flat between the enclosure wall and components, these holders keep it reliably in position. The self-locking threads also perform better than screws without nuts when repeatedly assembling and disassembling prototypes for further development.

The height is fixed at 10 mm; M3 mounting screws must be purchased separately, as must mating screws if the PCB is to be mounted from above. For thicker PCBs over approximately 3 mm, the holders may be too short.

Safety Notice

These plastic parts are intended exclusively for assembling prototypes and for testing and development purposes. They are not approved for permanent mounting in electrical installation equipment. Work on live circuits must be carried out by a qualified electrician.

Scope of Delivery

• 4x  PCB spacers
